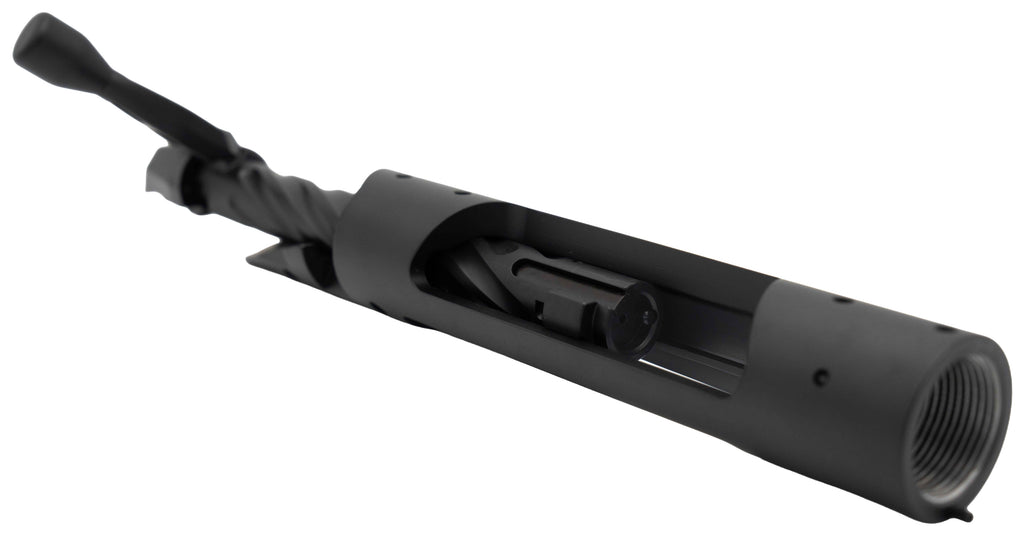

Weatherby’s first new action in over 50 years. The Model 307 was purpose built to accommodate the vast offerings of stocks, triggers, rails, mounts, and bottom metals that exist in the marketplace. The 2-Lug bolt features a convenient “tool-less” takedown for easy disassembly and maintenance. Shooters can expect the same precision craftsmanship that Weatherby has delivered since 1945.
FINISH
Bolt / Bolt Knob – Graphite Black Cerakote
TECH SPECS
Overall Length
Short Action – 7.9″
Long Action – 8.7″
Weight
Short Action – 1.65 lbs
Long Action – 1.78 lbs
Bolt Face Sizes
Short Action Standard – .473″
Long Action Standard – .473″
Long Action Magnum – .543″
Bolt Throw
90 degree throw
Bolt Knob Threads
5/16″-24
Headspace
.899″ +/- .000 (Bolt Face to Recoil Lug)
Breech Dimensions (Counterbore)
.740″ depth (measured from Tenon Shoulder)
.715″ inner diameter
Tenon Threads
1-1/16″-16, .880” long (Standard 700®)
Action Screws
1/4″-28
Mag Box Lengths
Short Action – 2.97″
Long Action – 3.95″
Magwell
Wyatt’s Outdoor Extended Length
